Nestled in Cape Town, Cape Town, Themba Nickel Alloys stands out as a top-notch manufacturer and supplier of high-quality Inconel Forged Fittings. They pride themselves on delivering exceptional quality and reliability across a variety of industries. With a strong focus on precision engineering and strict quality standards, Themba Nickel Alloys guarantees that every fitting is built to meet tough performance criteria, even in extreme conditions. Their Inconel Forged Fittings are crafted for durability, corrosion resistance, and stability at high temperatures, making them perfect for critical applications. Thanks to their extensive expertise in nickel alloy solutions, clients can trust that they’re getting products that offer remarkable mechanical strength and a long service life, all while enhancing industrial efficiency and safety.
These Inconel Forged Fittings are primarily made from nickel, chromium, and iron, often with small amounts of molybdenum, niobium, and titanium added to boost strength and resistance to corrosion. They showcase impressive mechanical properties, such as high tensile and yield strength, excellent creep and fatigue resistance, and stability at elevated temperatures reaching up to 700°C. Plus, they excel in resisting oxidation and corrosion in harsh chemical environments. The forged manufacturing process further enhances the structural integrity and toughness of these fittings, ensuring they perform reliably in high-pressure, high-temperature, and corrosive settings.
| Specifications | ASTM B564 & ASME SB564 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Grades | Inconel 600, 601, 625, 718, 783, 690, X750 Forged Fittings |

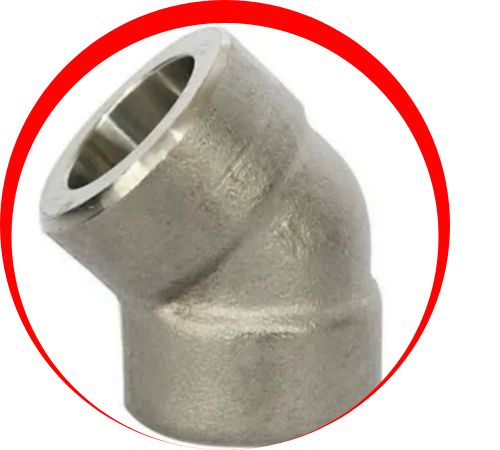

| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | Ni | C | Mn | Si | S | Cu | Fe | Cr |
| Inconel 600 | 72.00 min | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 14.00 – 17.00 |
| Inconel 601 | 58.0 – 63.0 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 21.0 – 25.0 |
| Inconel 625 | 58.0 min | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 20.0 – 23.0 |
| Inconel 718 | 50.00 – 55.00 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
At Themban Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel Forged Fittings in Cape Town , South Africa, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Cape Town, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele
Contact us to get a quick quote for your requirement.
Inconel Forged Fittings find their place in demanding sectors like aerospace, chemical processing, power generation, oil and gas, and marine engineering. Their ability to endure high pressures, extreme temperatures, and corrosive conditions makes them ideal for pipelines, valves, heat exchangers, and reactor systems. These fittings guarantee leak-free connections and long-term operational safety in critical systems. In chemical plants, they stand strong against aggressive acids and alkalis, while in power plants, they maintain their integrity through thermal cycling. Their reliability and durability truly make them a go-to choice for industries that can’t afford to compromise.
